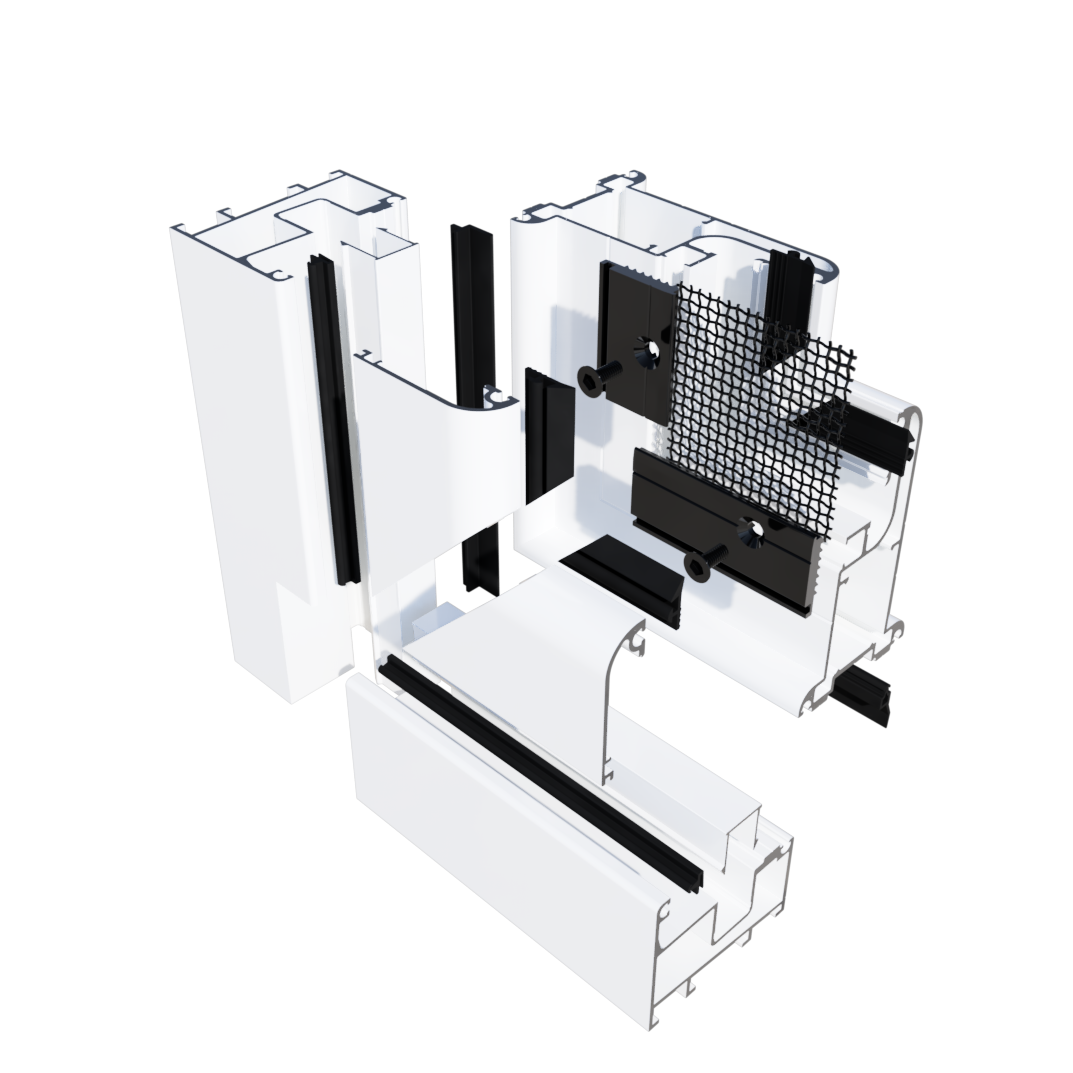

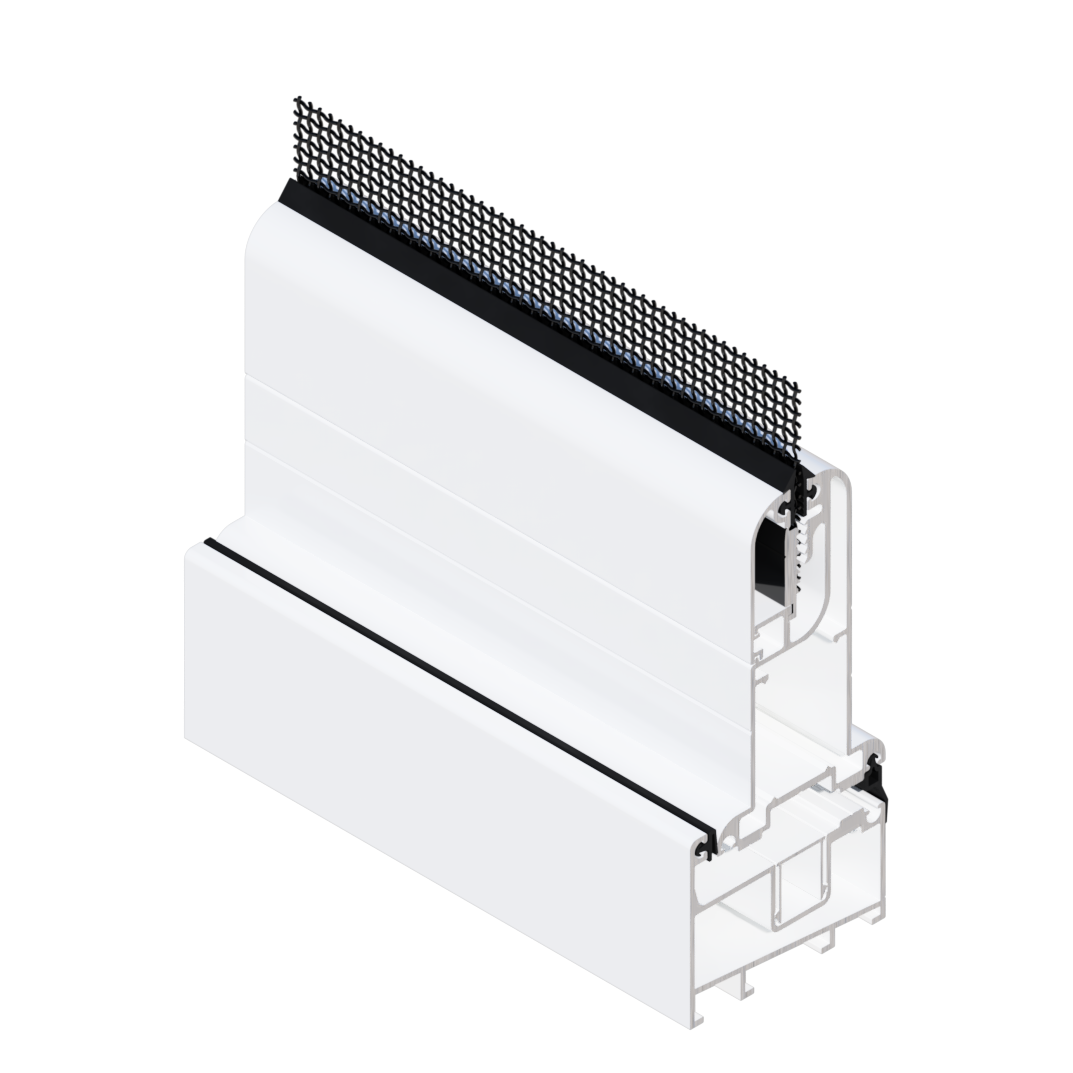

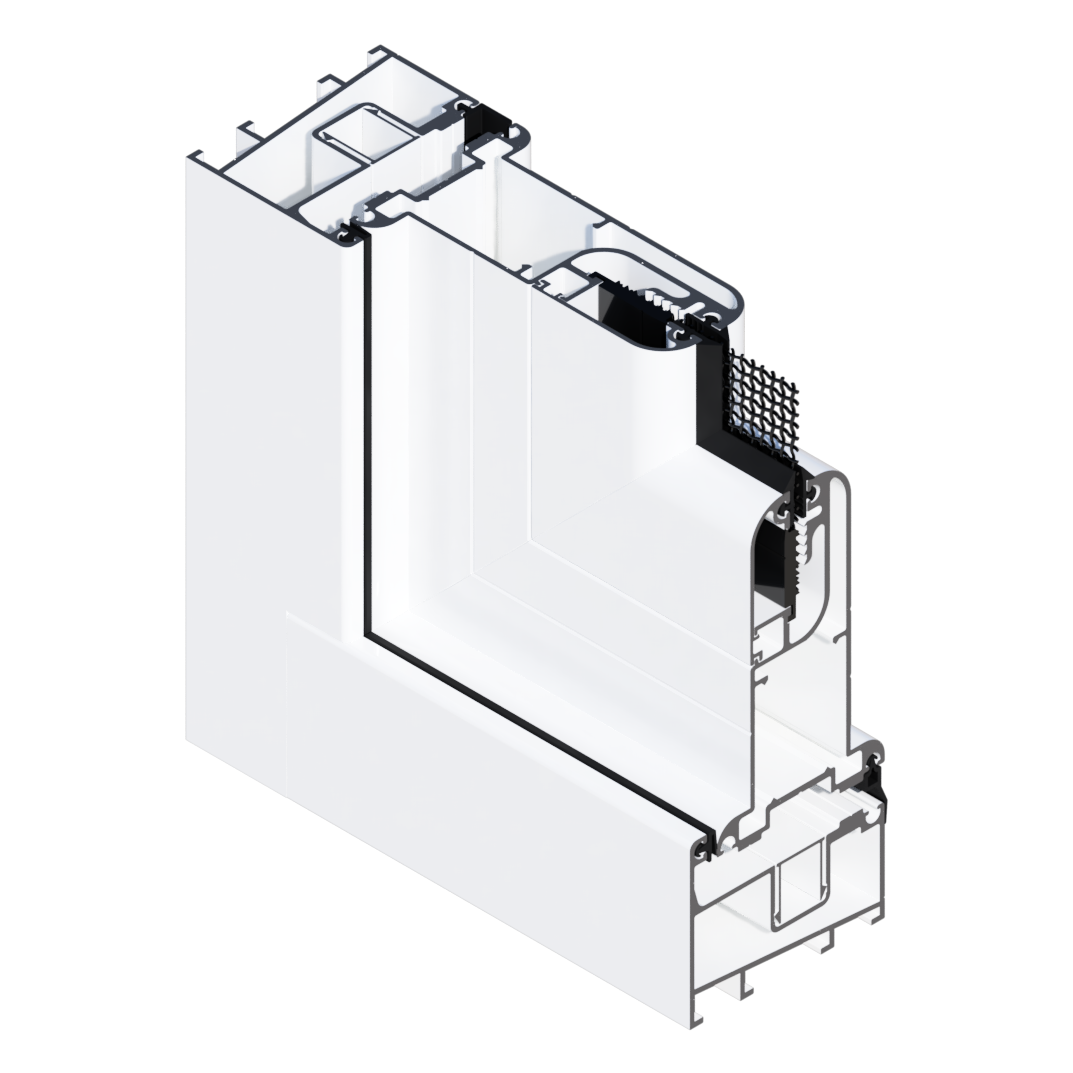

Crimsafe Security Screens – Crimsafe 0.9mm diameter high-tensile 304-grade woven stainless steel security mesh, screw-clamped at 62.5mm spacings into aluminium Ultimate Bi-Fold door frame (41A) with clip-on clamp cover (41E) using Crimsafe Screw-Clamp™ technology, tested to withstand up to 750 Joules in a single impact and 3,000 hours in the prohesion accelerated salt spray and cyclic test: the equivalent of 30 years exposure to the elements.
TBA
All doors and screens are to be fitted as per AS5040 – 2003 and the Crimsafe Installation Manual, using Crimsafe 410 stainless steel tamper-resistant security head, installation screws.
10 years. Terms and conditions apply.
304 structural grade, high tensile-tuff® stainless steel, 0.9mm wire diameter, 800 + 40 Mpa.
Plain weave, 10 Count Mesh i.e: 10 strands on the weft x 10 strands on the warp, per square inch / 25.4mm of mesh. Woven to Standards ISO 9044/ ASTM E2016:06.
The Crimsafe mesh has apertures on average of 1.5mm x 1.5mm.
The open area of the Crimsafe woven mesh is 41.6%.
Extruded aluminium alloy 6063.
Crimsafe, tamper resistant, perimeter Screw-Clamp™ system, securing the mesh in the frame with security head screws, spaced every 62.5mm penetrating through the clamp, the mesh and into the screen frame.
Powder coat application as per AS4506: 2005 Metal Finishing for thermoset powder coatings.
All Crimsafe products have been tested to and pass the requirements of AS5039 – 2008 as prescribed in AS5041 Methods of Test – Security screen doors window grilles:
External Testing to the relevant Industry Architectural Standards:
To correctly specify this product, copy and paste this text into your project specification documentation.
